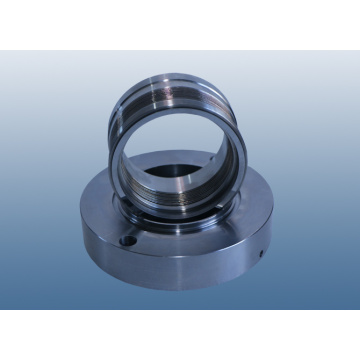

High Temperature Rotary Bellows

Basic Info

Model No.: HB

Structure: Single End

Pressure: Medium Pressure Mechanical Seals

Speed: General Speed Mechanical Seal

Temperature: High Temperature Mechanical Seal

Performance: Temperature

Standard: Standard

Balance: Balanced

Additional Info

Packaging: Carton or plywood case

Transportation: Ocean,Land,Air

Place of Origin: Dandong

Certificate: ISO9000 certificate

Port: Dalian

Product Description

Structural Features:

1. 45° angled edge design, effective dispersion of stress, can bear higher pressure and ensure longer service time.

2. Flexible secondary seal to prevent seal failure, reduce the wear of the shafe and sleeve.

3. High temperature material will ensure the seal work in the higher temperature.

4. Rotary design, using the rotation of the rotary ring to achieve seal-cleaning of  the bellows and prevent the bellows from blocking and lossing flexibility.

Application range:

Rotating equipment in petroleum refining, petrochemical, electric power, meallurgy, pharmaceuticl, food and other industries. Mainly used in medium and low viscosity medium with high temperature and cleanness or containing a large amount of particles, such as acid, alkali, light oil and some organic materials.

Parameters:

Temperature: -75~400 ℃

Pressure: -0.1 (vacumm) ~4.0 Mpa

Speed: ＜25m/s or no more than 5000r/min
